M8 x 75 Chien Tsai Flat die thread rolling machine

View Seller Detail

MSZ-2828

Price: USD 5,330.00

Country of Mfg	Taiwan
Location	Out of India
Make	Chien Tsai
Model	ZR20H
speed of machine	160 ppm
Max dia of screw / bolt	8 mm
Max length of screw / bolt	75 mm
Quantity	1

Specifications:

Diameter: 4-8
Screw Length: 75 mm
Thread Length: 100 mm
Moving Dies Stationary Length: 108/127/25
Main Motor: 7.5 HP
Max. Output: 120-160 pcs/min
Approx. WT.: 2230 kgs
Machine Size: 2000x1600x1700

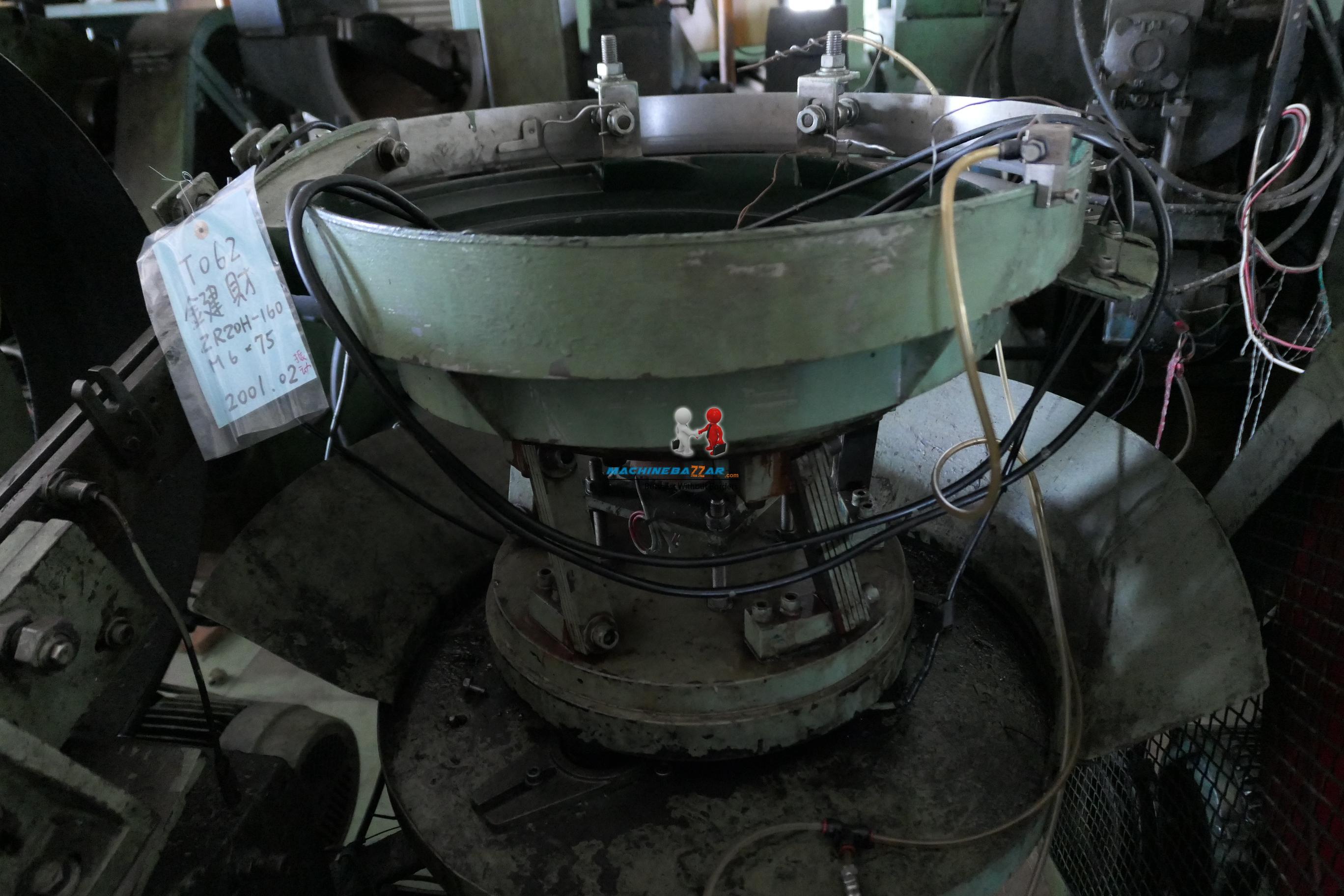

With Vibrating Feeder and 90 degree feeding system
