wire straightener machine

View Seller Detail

MSZ-3223

Price: INR 1,540,000.00

Capacity draw bar m/c	0 mm
Max cutting size	0 mm
Max length of bar	NA
Max size of bar	0 mm
Type of wire draw machines	N
Condition	N
Quantity	2

Specifications:

PERFORMANCE IN TENSIONING MODE
Max. tensioning force 140 kN
Min. tensioning force approx. 10 kN
Max. speed 5 km/h
PERFORMANCE IN PULLING MODE
Max. pulling force 140 kN
Speed at max. pulling force 0.5 km/h
Max. speed 2.2 km/h
BULL WHEEL
Number 2
Diameter 1500 mm
Groove 45 mm
Optional 60 mm
Number of conductors up to 4
DIMENSIONS | WEIGHT
Length x Width x Height ~ 5.0 x 2.3 x 2.9 m
Weight ~ 6300 kg

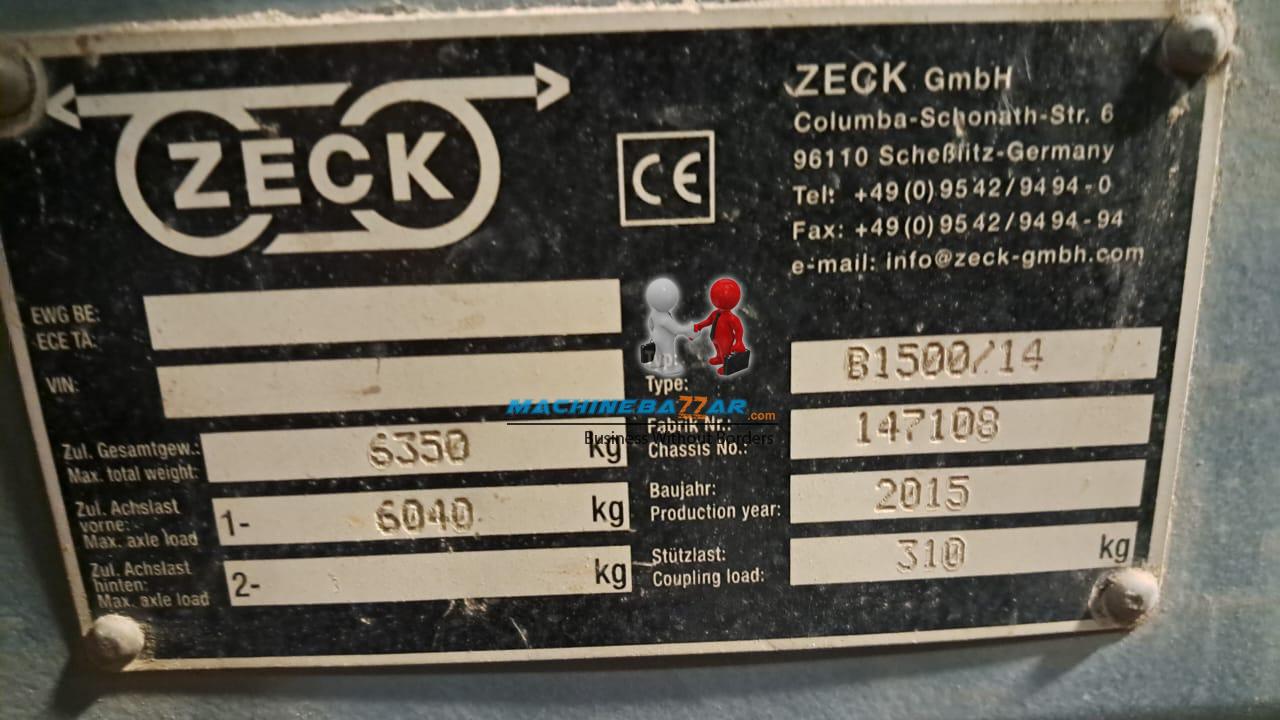

MANUFACTURER -ZECK GERMEN,
PRODUCT NAME -TENSIONER
MODEL-B1500/14
