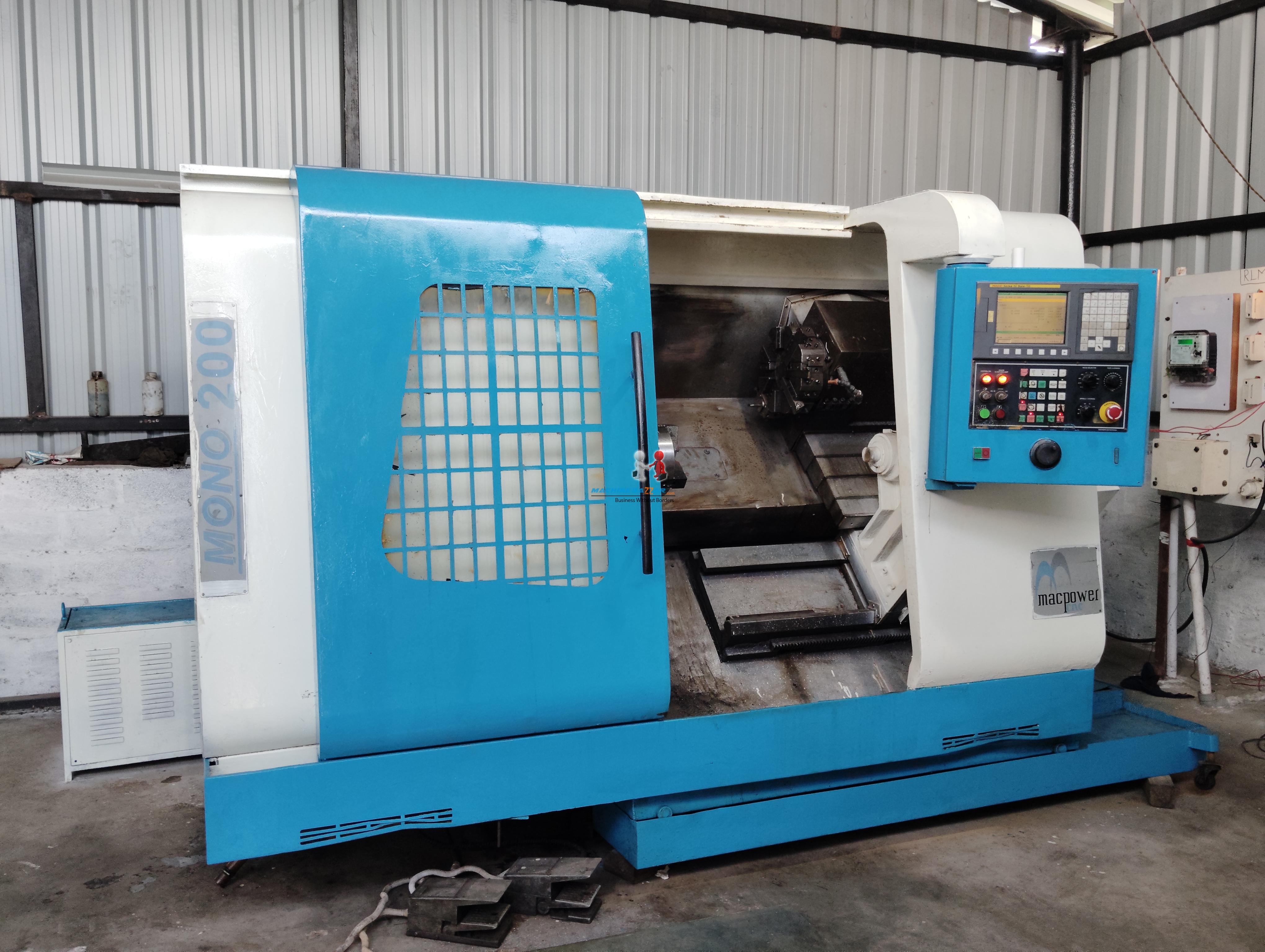

200 X 550 Macpower CNC Turn mill center

Sold Machines

MSZ-3402

Price: INR 850,000.00

Location	India
Make	Macpower
Model	Mono
speed of machine	6000
Weight	4.5 ton
Year of Mfg	2012
Chuck dia	200 mm
Max length of product	550 mm
Spindle dia	200 mm
System {Operating}	Fanuc series Oi-Mate-TD
Quantity	1

Specifications:

Macpower Mono 200 ,
Year of manufacturing: 2011-2012,
Sr. No. Specification Description
1 Machine type: CNC Turning Machine
2 Brand: Macpower
3 Model: Mono 200
4 Year of manufacturing: 2011-2012
5 Condition - Working? Working
6 Chuck size: 200mm
7 Maximum turning diameter: 350
8 Maximum turning length: 550
9 Spindle nose taper: A2-6
10 Spindle bore: 63mm
11 Turret tpye BTP - 80
12 Number of tool holders: 8
13 Control system: Fanuc series Oi-Mate-TD
14 Lm guide or box guide? Lm guide
15 Tailstock is available or not? YES/ available
16 Stabiliser available with machine: yes/no YES/available
17 Machine Dimensions (Length, Width, Height in Ft) 6.2 x 9.7 x 6.1 feet.
18 Machine Weight: (In kg or Tonns) 3900
19 List of accessories YES ( TOOL HOLDERS)
20 Manuals & Other Literature available? YES
21 Maintenance history Available? NO
22 if yes then, YES
23 Documents YES
