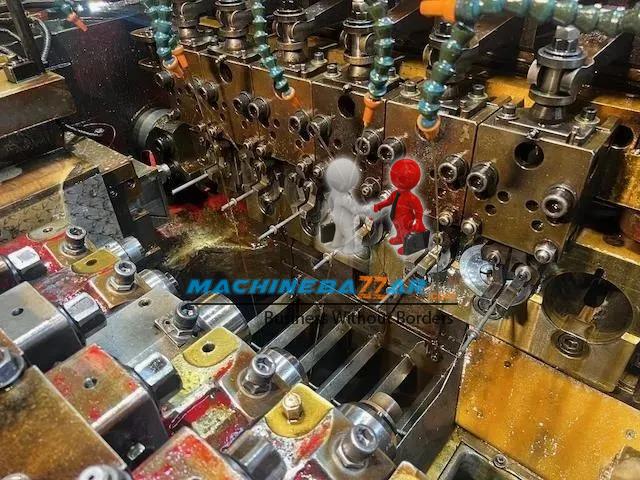

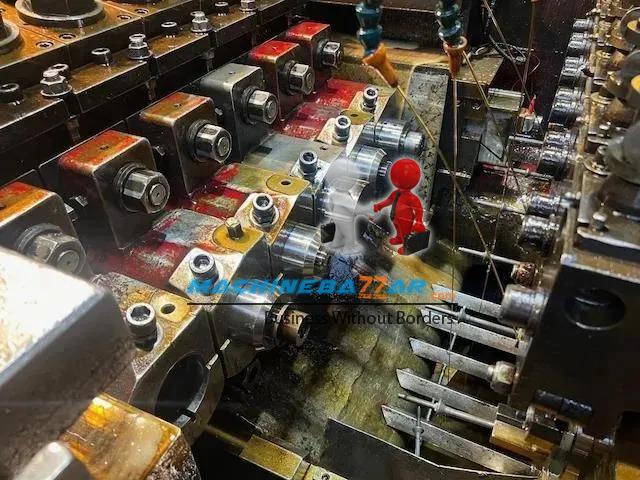

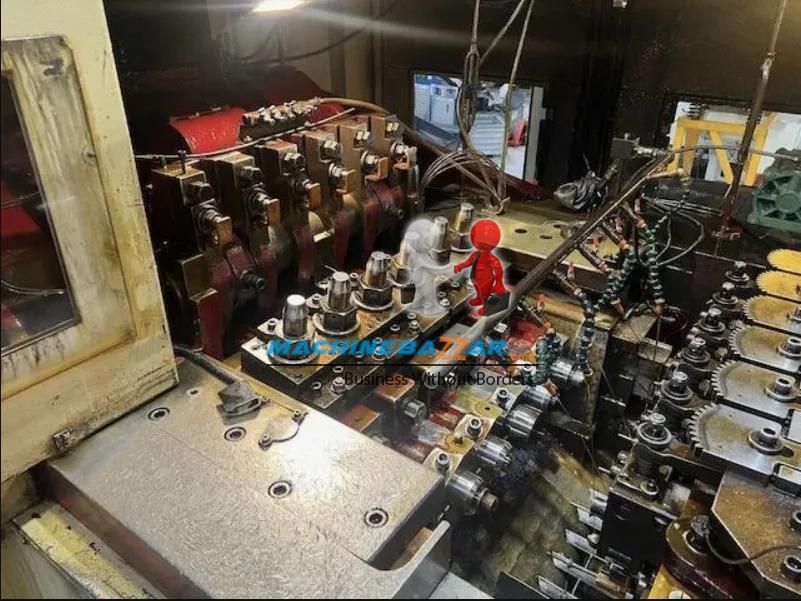

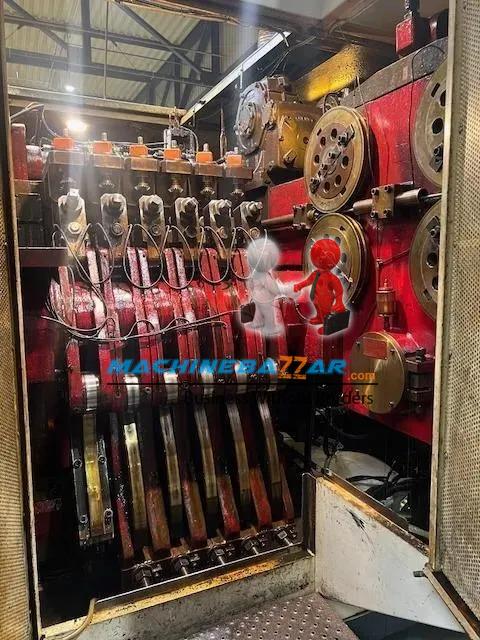

M30 X 200 CHUN ZU 6 DIE 6 STATION BOLT PART FORMER

View Seller Detail

MSZ-4122

Price On Request

Condition	GOOD & RUNNING
Country of Mfg	TAIWAN
Cut of Dia	30 mm
Cut of Length	240 mm
HP	125
Location	OUT OF INDIA
Make	Chun Zu
Max Shank Length	200 mm
Max wire dia	30 mm
Model	CBP-206L
speed of machine	70 PPM
Type	BOLT PART FORMER
Weight	80 TON
Year of Mfg	2010
Delivery Time	90 DAYS
Quantity	1

Specifications:

MACHINE IS IN RUNNING AND GOOD CONDITION
Forging Stations: 6
Forging Load: 390,000 Kgf
Cut-Off Diameter: 30 mm
Cut-Off Length: 240 mm
PKO Stroke: 60 mm
KO Stroke: 220 mm
Punch Size (Dia. Length): 90 X 215 mm
Cut-Off Die Size (Dia. Length): 94 X 130 mm
Die Size (Dia. Length): 125 X 240 mm
Die Pitch: 140 mm
Main Motor: 125 HP
Overall Dimensions: 8340 (L)X5270 (W)X2975 (H) mm
