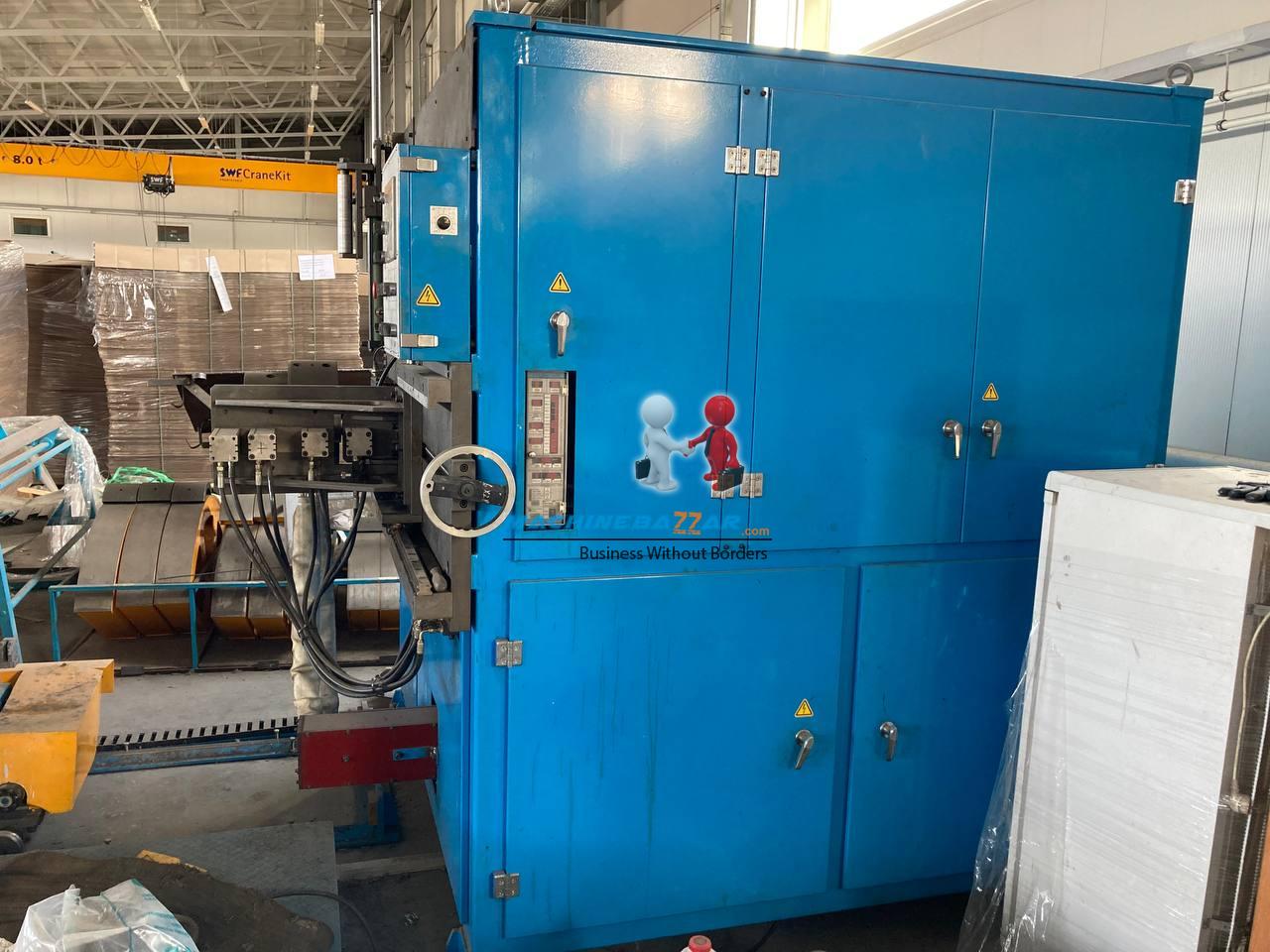

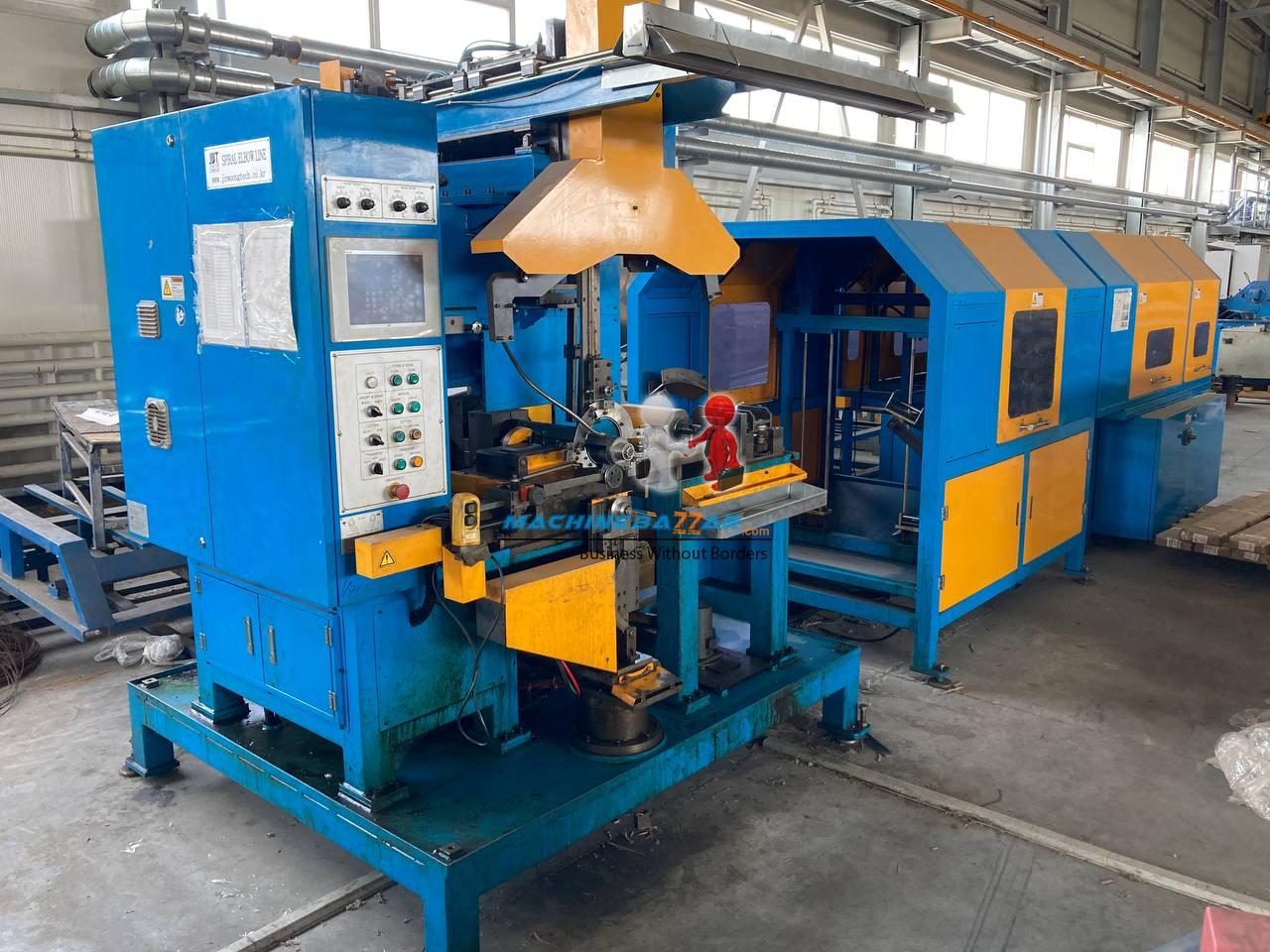

Spiral Elbow Line SEL-450
+ Spiral Elbow Beanding Machine SEB-450
Type of equipment: Industrial
Type of industrial equipment: Machine tools
Machine type: For assembling segment bends
Processing material: Metal
CNC machine: Yes
Condition: Used
Availability: In stock in Russia

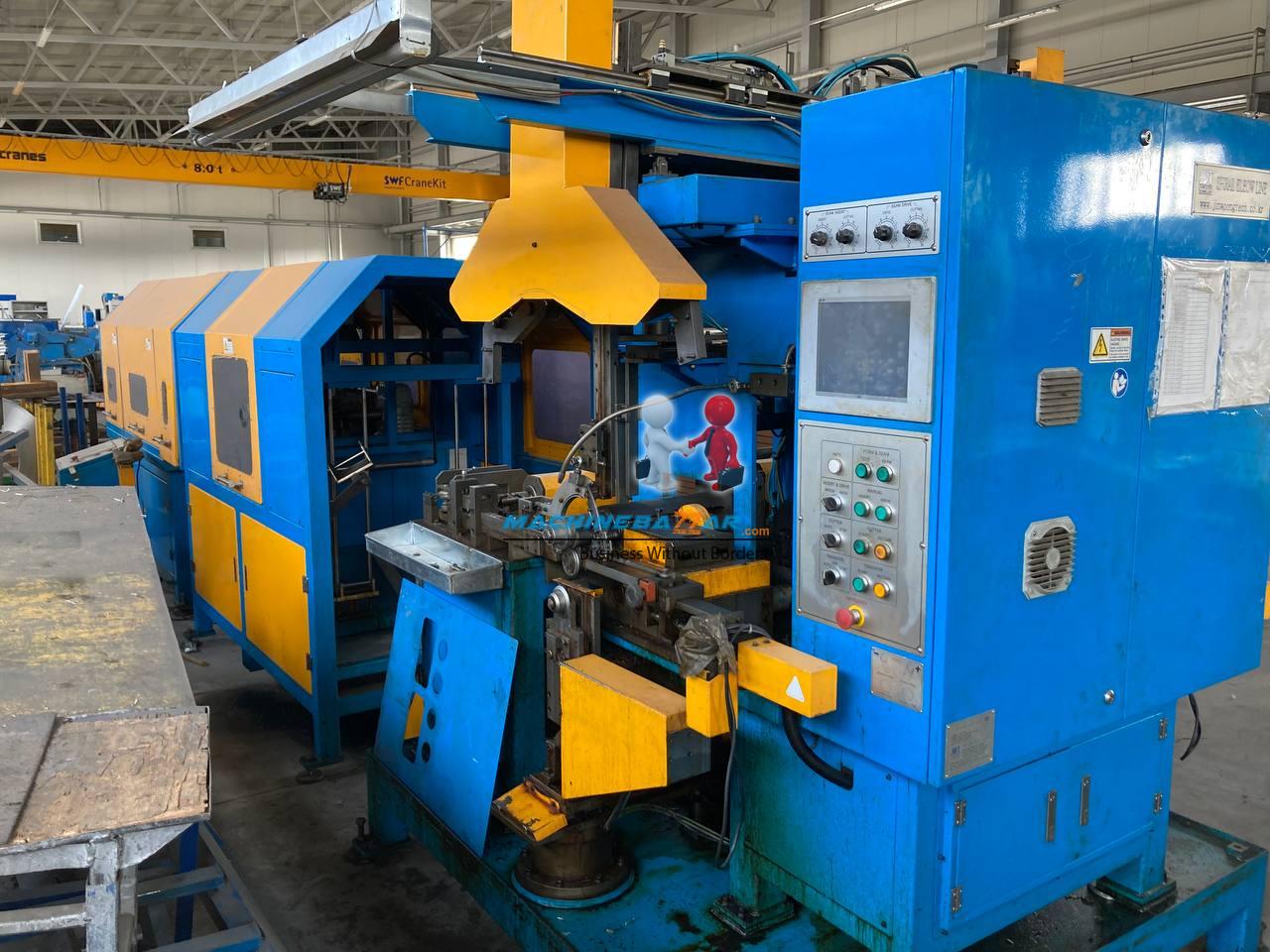

A unique, high-performance spiral elbow line.

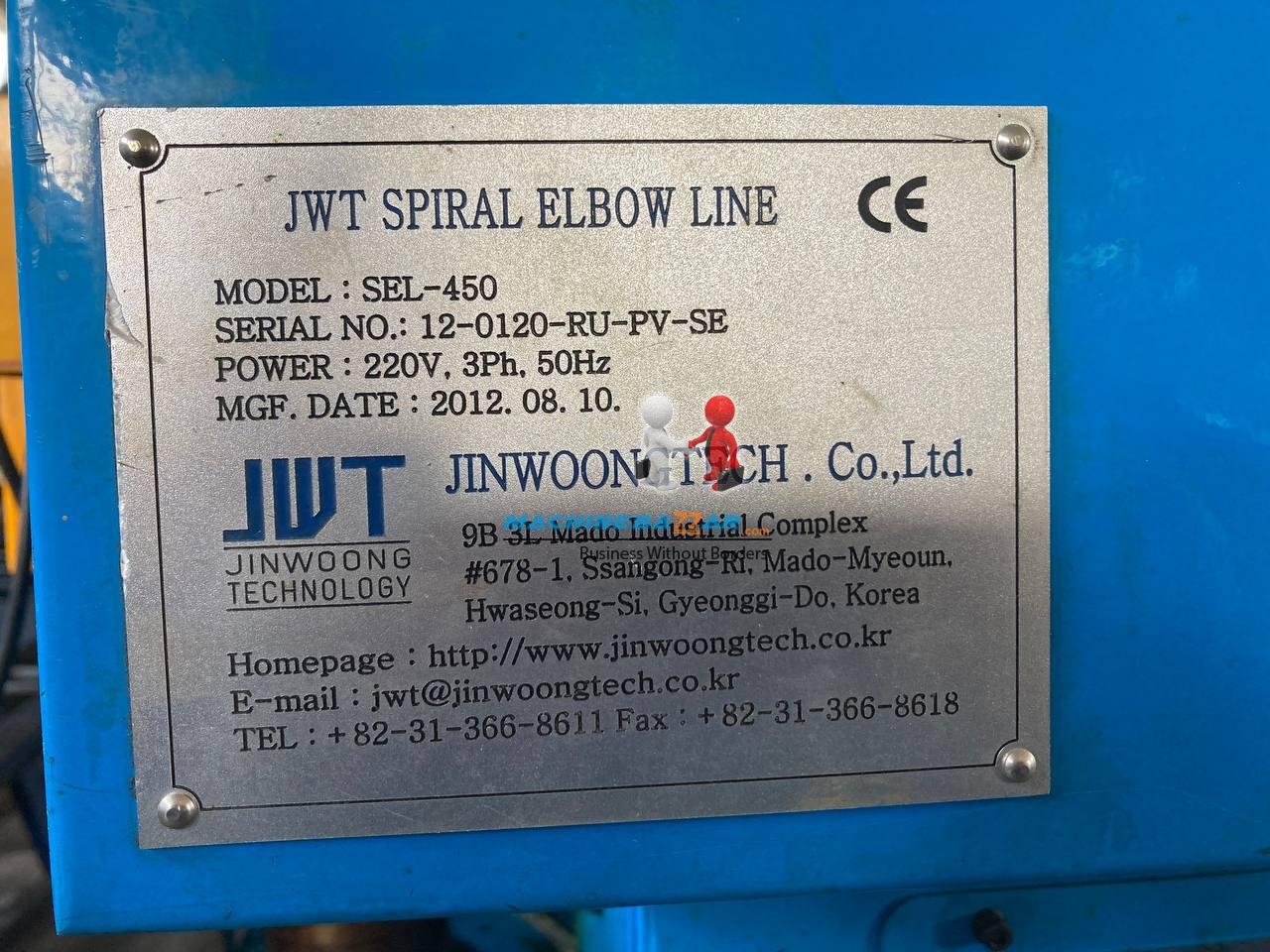

The manufactiurer is JINWOONG TECHNOLOGY CO., LTD, Korea.

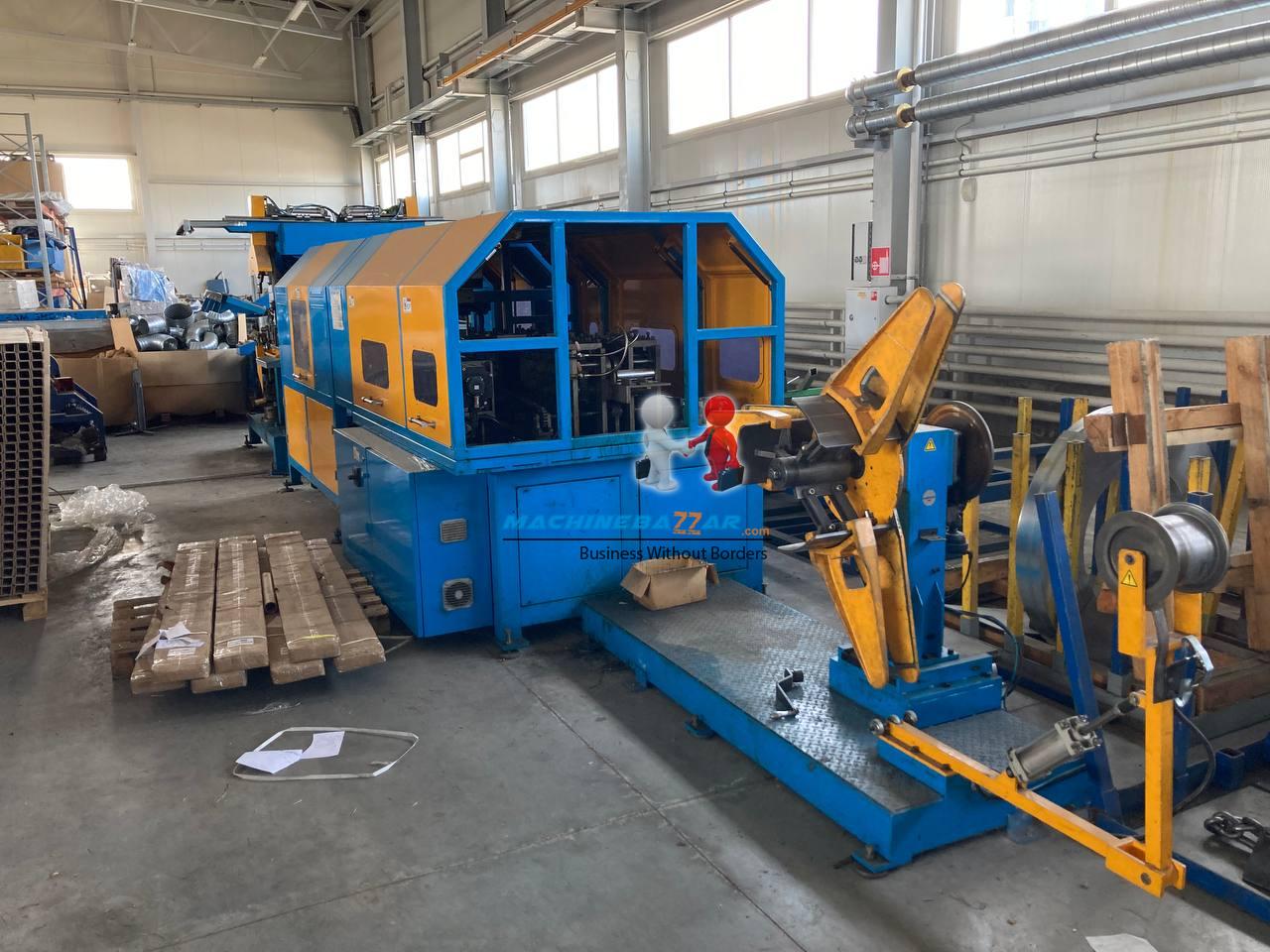

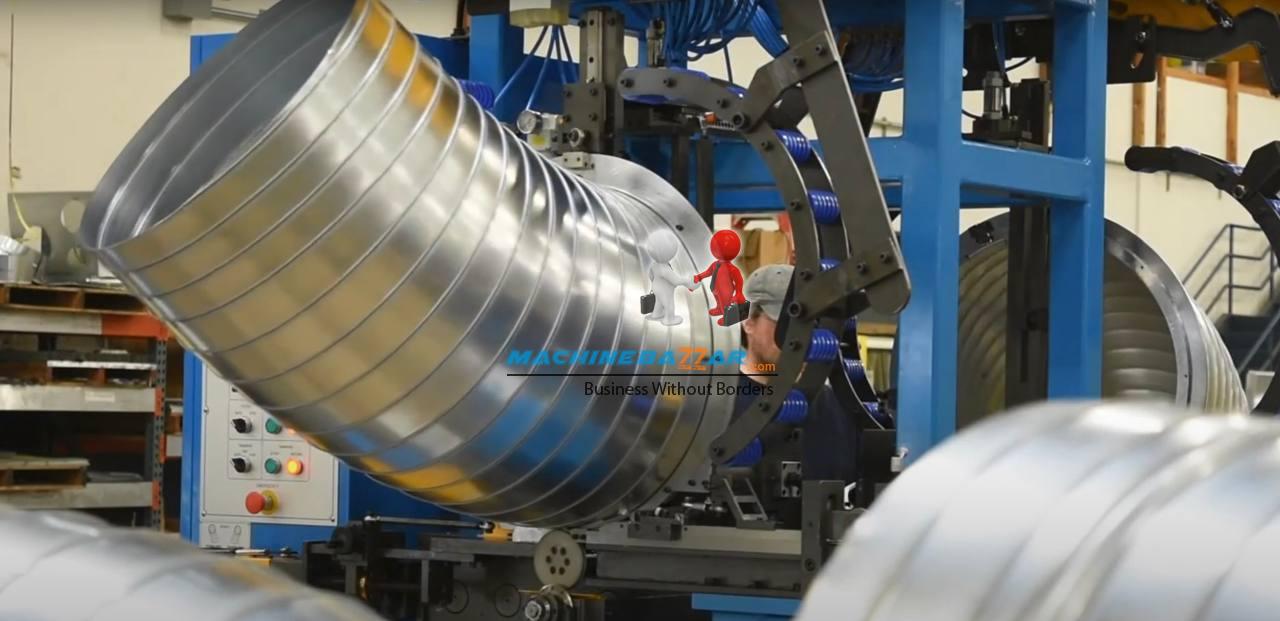

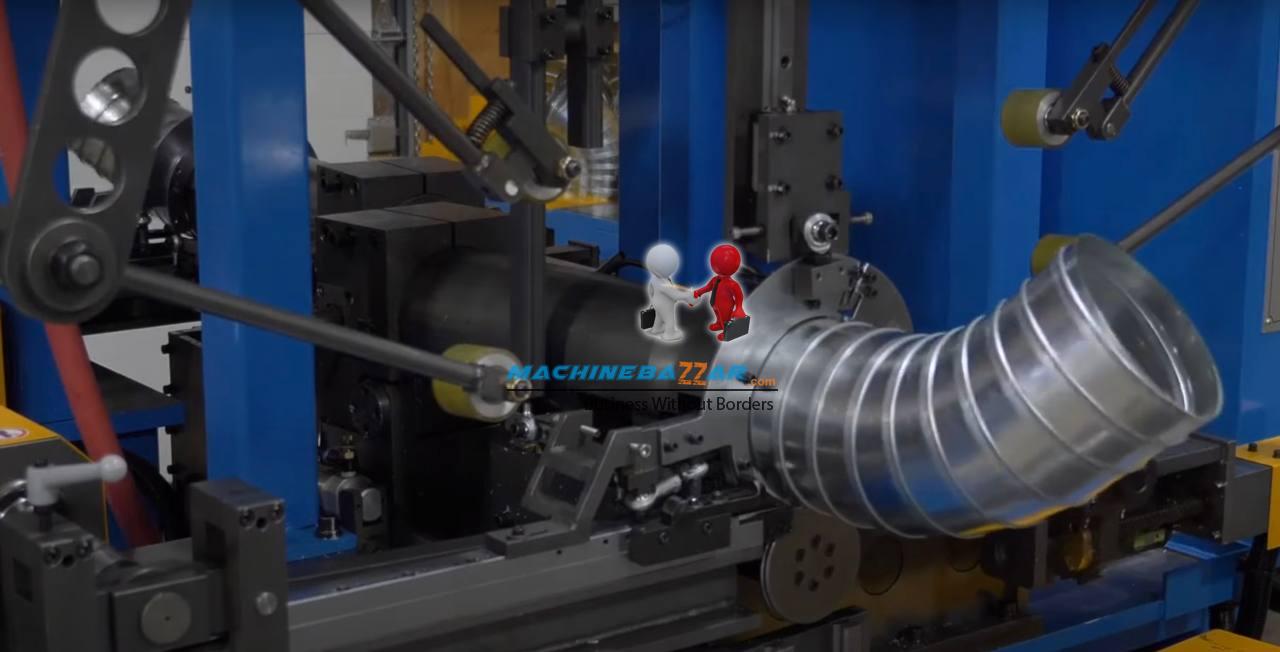

JWT Spiral Elbow Line produces Spiral elbows from material in coil.
These elbows are produced automatically with production cycle times as low as 18 seconds per piece.
The entire width of the coil is used so there is no material waste.
The JWT Spiral Elbow Line is available in model SEL-450 .
Model SEL-450
Overall dimensions LxWxH, mm. 2645225011000
Diameter limits, mm 100 x 450
Air consumption, min. 190 cm x 6 Bar
For the production of Spiral elbows from coil
Minimum elbow diameter 100mm / 4 inches
Maximum elbow diameter 450mm / 18 inches
Elbow centerline radius adjustable 1 - 1.5 x dia.
Material thickness galvanized mild steel 0.5mm and 0.6mm / 0.020" and 0.024" coil
Power requirements 30KVA (220V/60Hz/3ph)
Floor area requirements (L x W x H) 10M x 2.3M x 2.4M, 32.8 ft X 7.5 ft X 7.9 ft

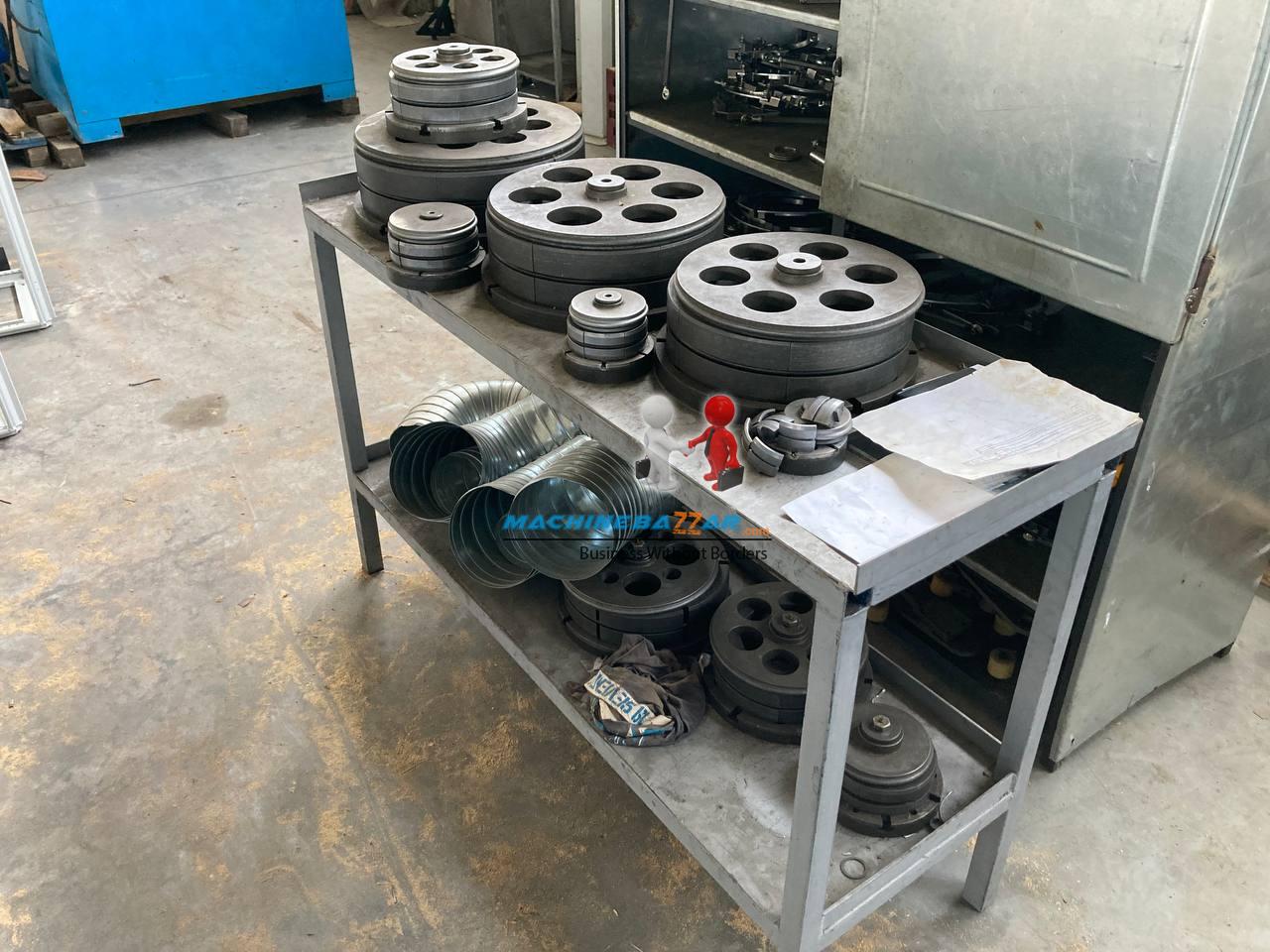

Changeover of elbow diameter (approximate) 20 - 30 minutes
Changeover of centerline radius by input at PLC control

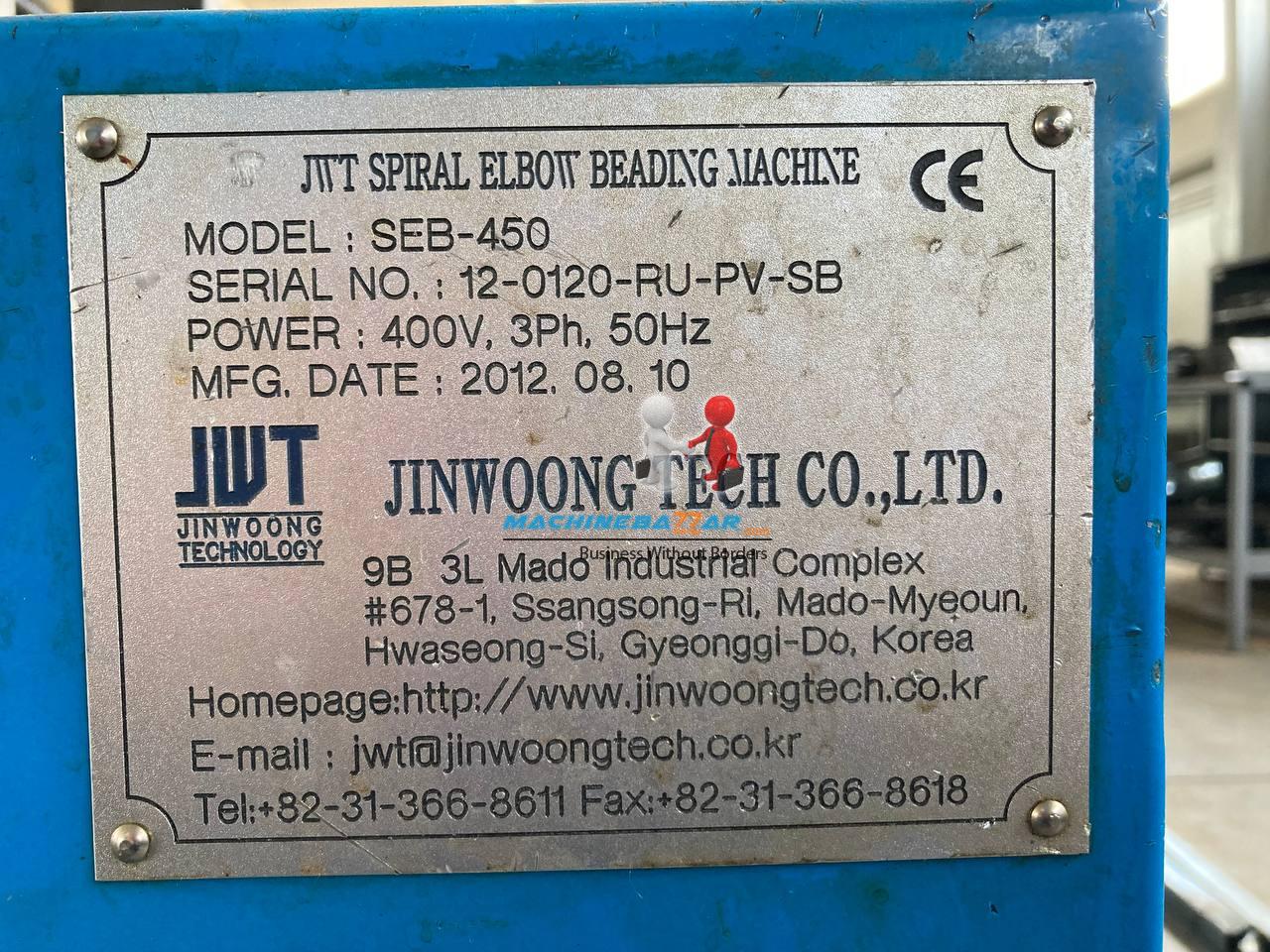

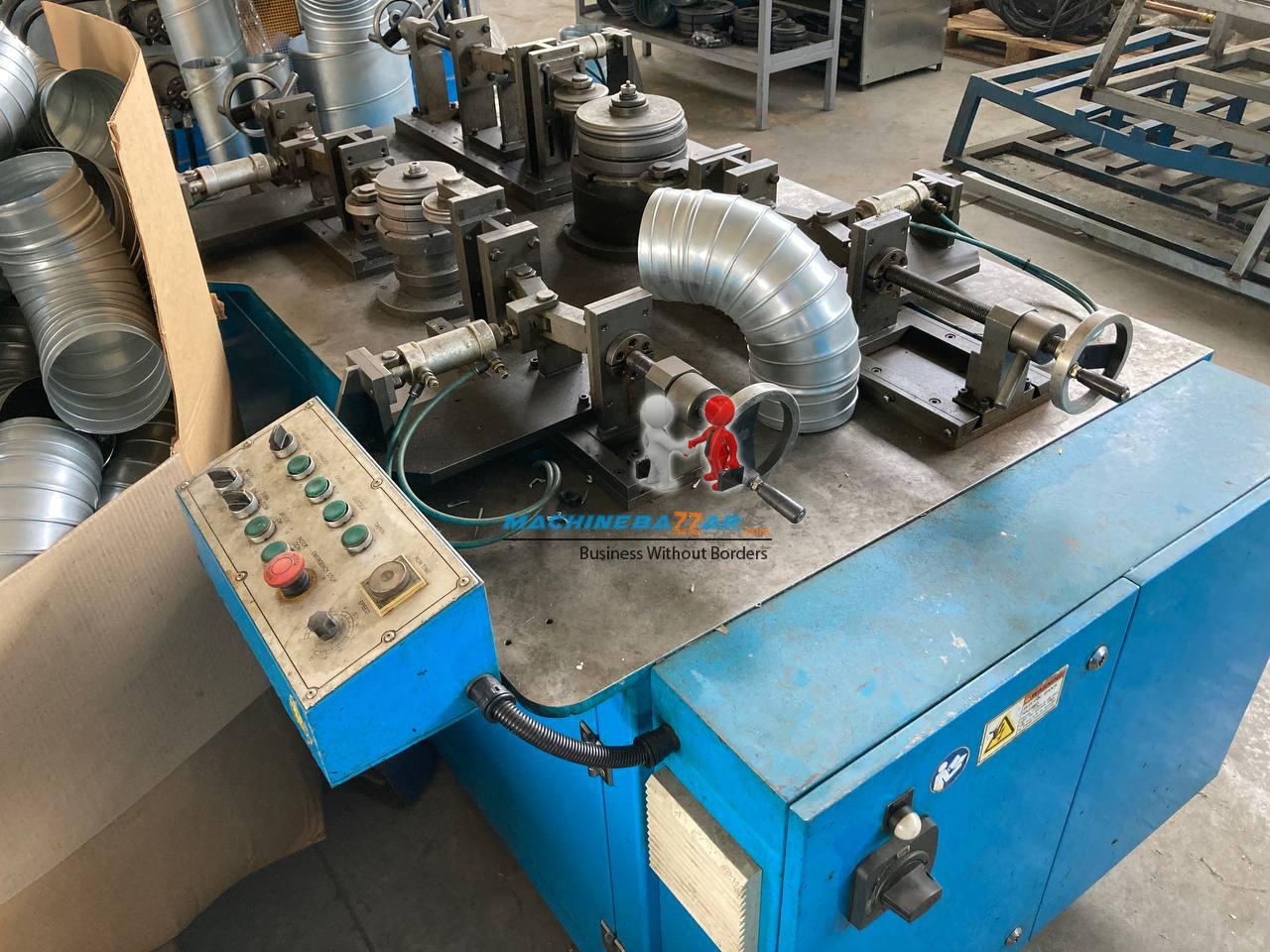

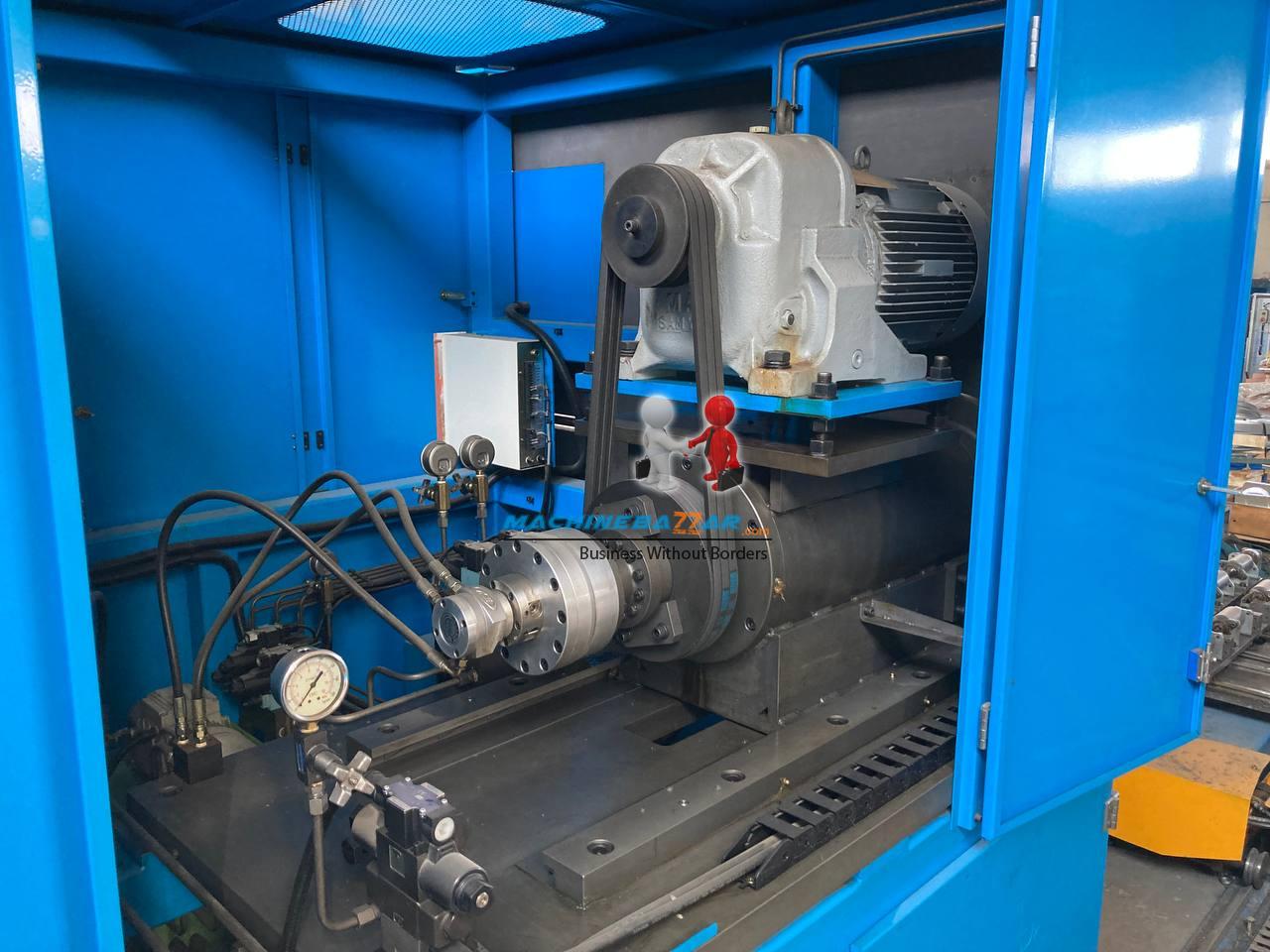

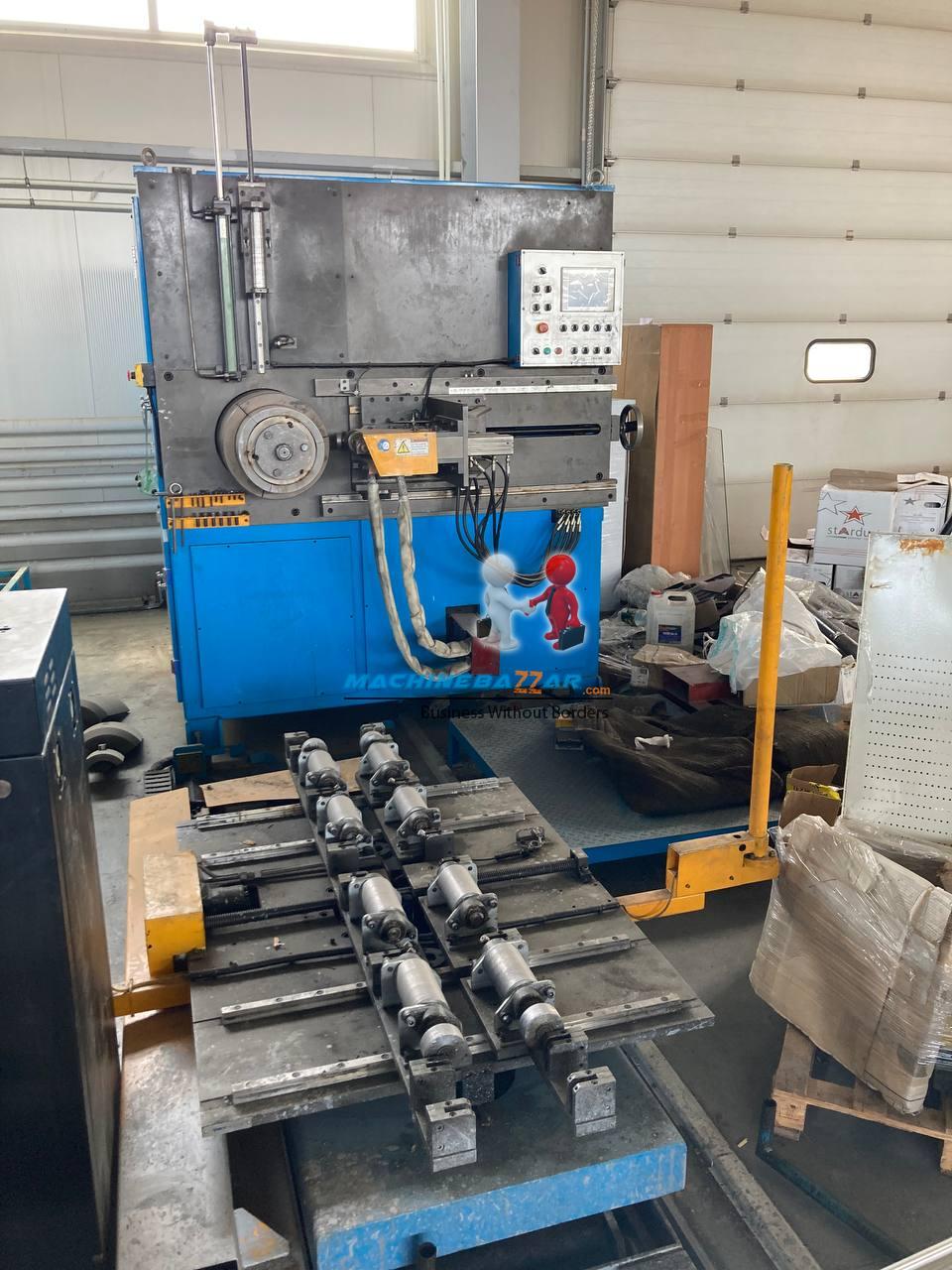

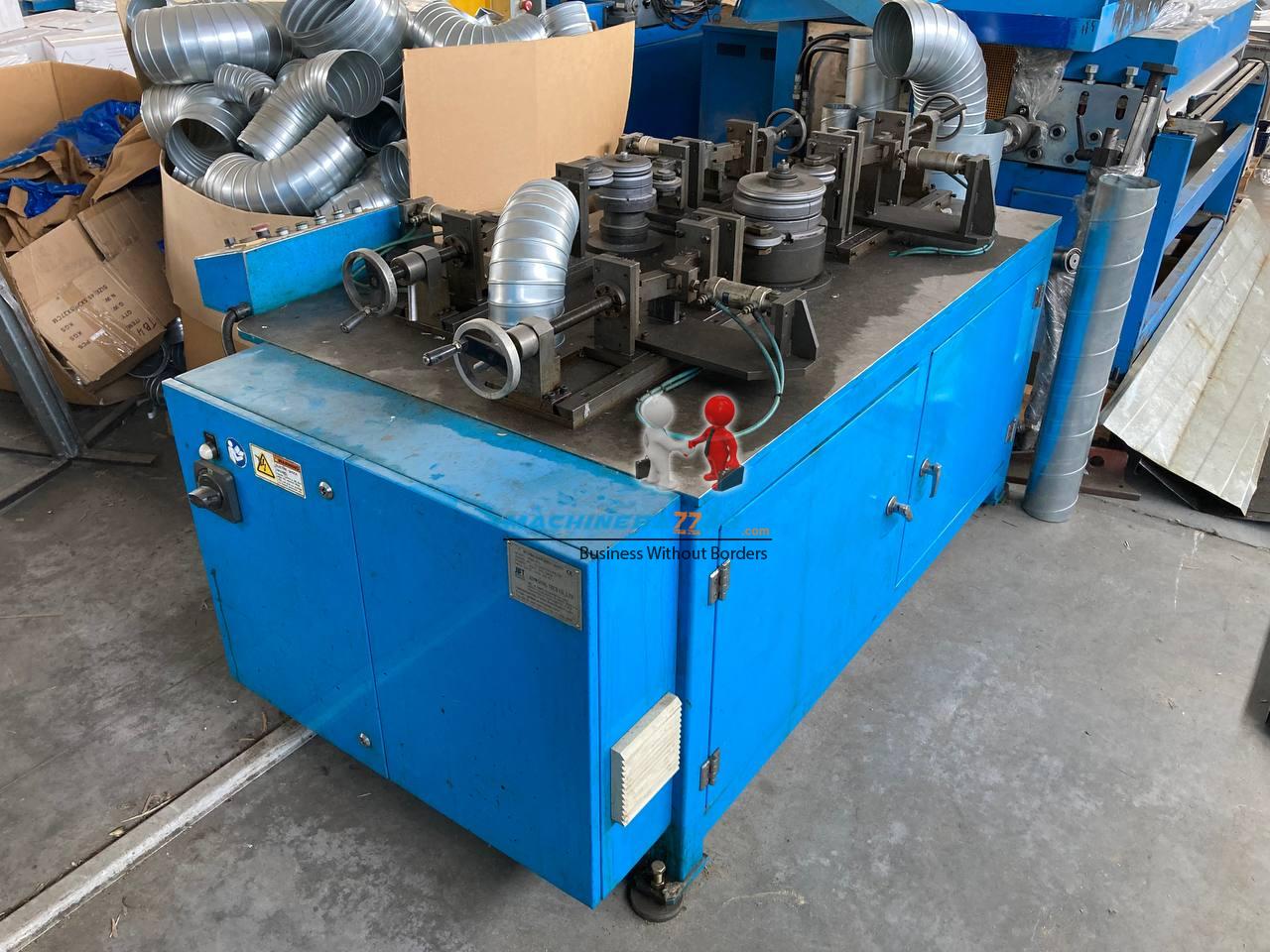

Spiral Elbow Beanding Machine SEB-450
A machine for forming a zig on spiral bends, with speed control and electric actuators.
Overall dimensions LxWxH, mm. 1740x1310x1090
Diameter limits, mm 100 x 450
Air consumption, min. 190 cm x 6 Bar
