400 X 650 STUDER CNC Cylindrical grinding machine

View Seller Detail

MSZ-4149

Price: INR 1,800,000.00

Between center size	650mm
Max dia of product	250 mm
Max length of product	650 mm
Wheel dia of grinding m/c	600 or 400mm
Colour	Orange
Condition	running
Country of Mfg	Switzerland
HP	5kw
Location	INDIA

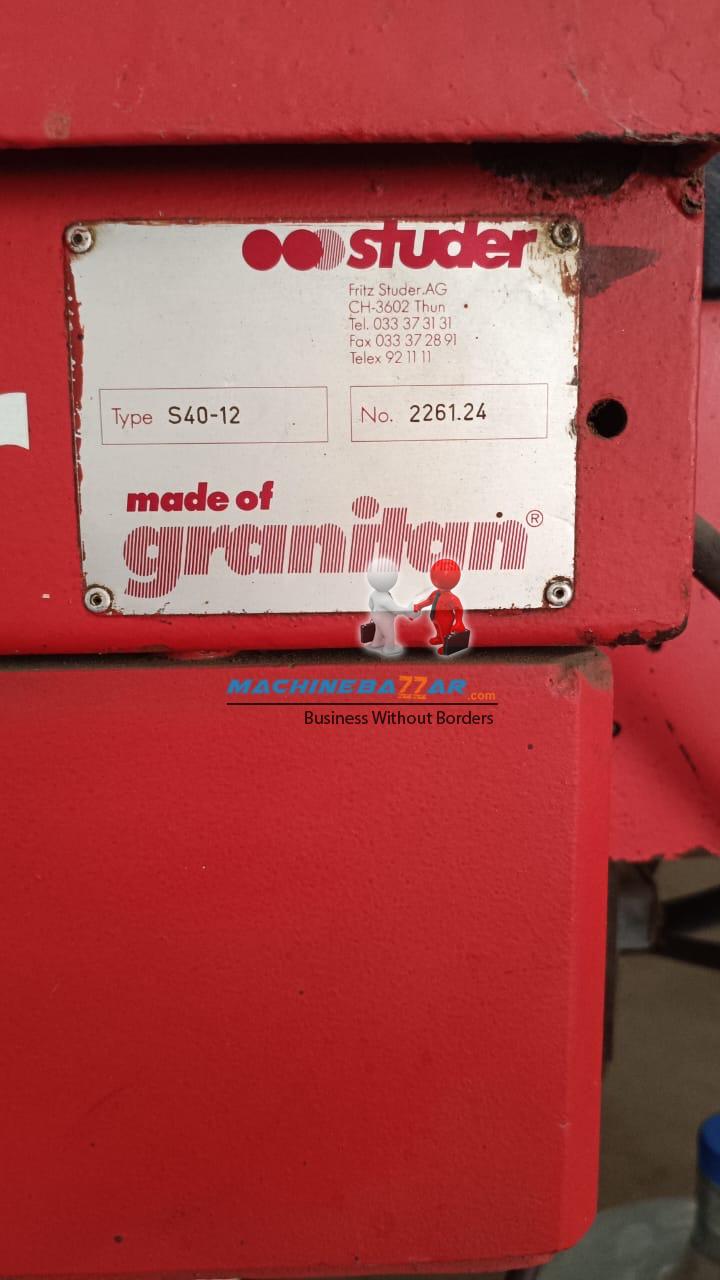

Make	Studer
Model	S40-12
speed of machine	50 -9000 slide
Type	Cnc
Weight	3400kg
With tool kit	No
Year of Mfg	1990
Table size ( small size ) X	400 mm
Table size (large size ) Y	650 mm
Quantity	1

Specifications:

CNC Cylindrical grinding machine Semeins controller . MAIN DIMENSIONS
Centre height: 125 mm
Distance between centres: 650 mm
Grinding length: 650 mm
Grinding diameter: 250 mm
LONGITUDINAL SLIDE
Speed: 50-9000 mm/min
Minimum automatic travel: 0.1 mm
Max. travel: 400 mm
Travel per revolution of electronic handwheel: 0.1 mm
Maximum swivel of table: 12 degress
WHEELHEAD
Grinding wheel:
-Diameter: 400 mm
-Width: 80 mm
-Bore: 127 mm
Power requirement: 3 kW
Peripheral speed: 30 m/s
Initial positioning: 210 mm
WORKHEAD
Swivel range: 0-90 degress
Speed range freely progammable: 30-675 rpm
Fitting taper: Morse 5
Collets: W-25
Power requirement: 1.1 kW
