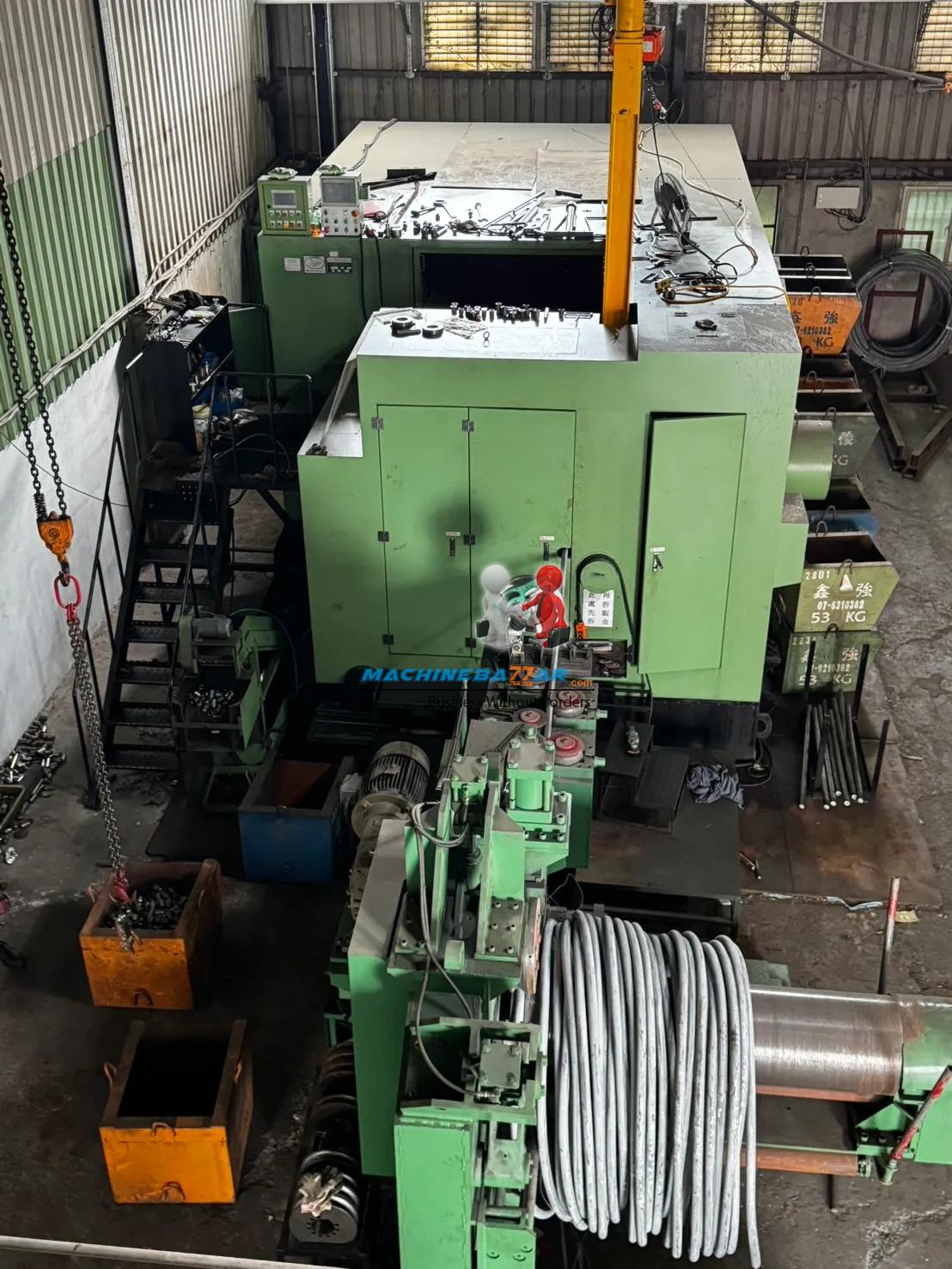

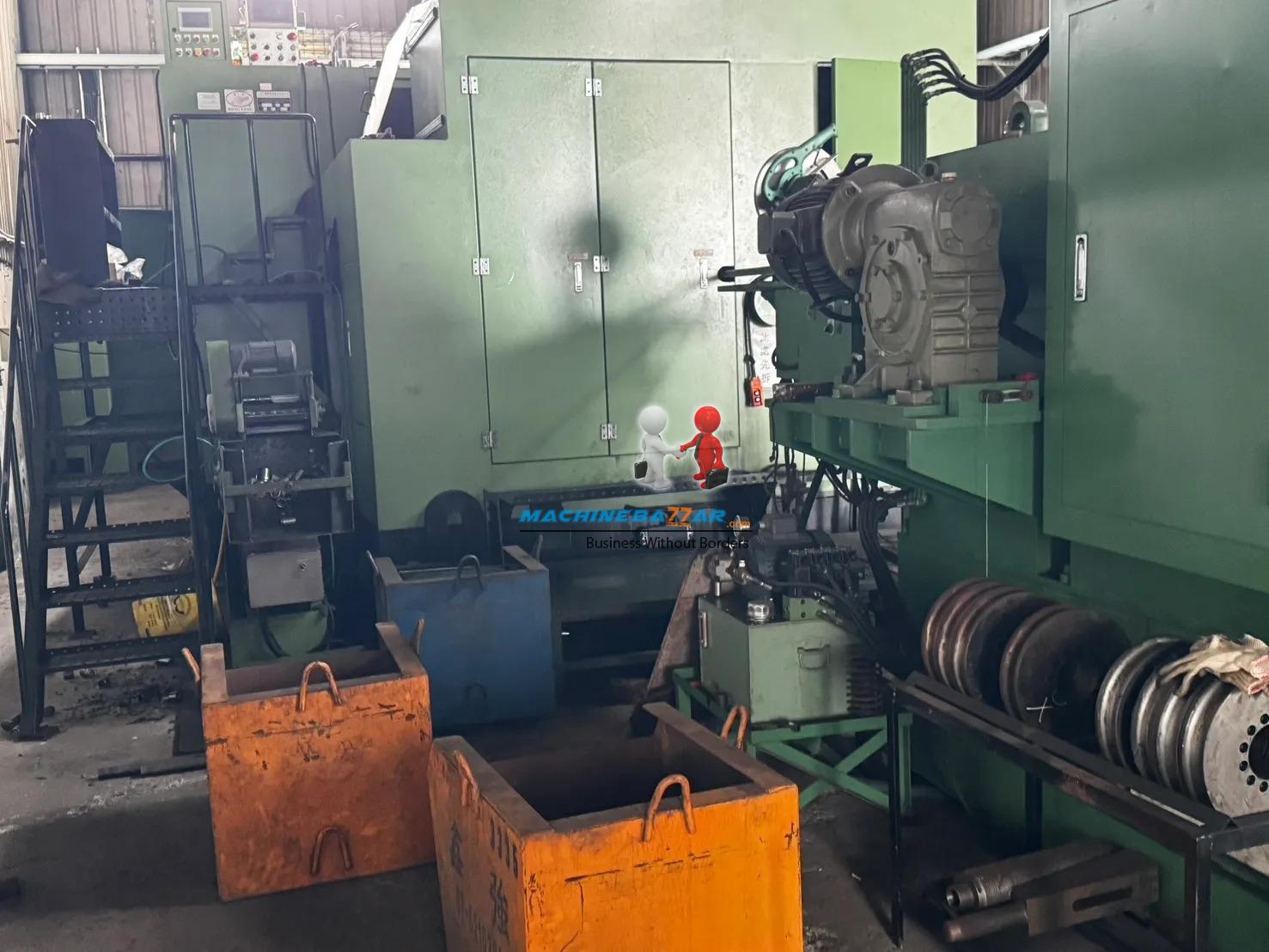

41B(27 mm) BIING FENG 6 DIE 6STATION NUT PART FORMER

Condition GOOD & RUNNING
Country of Mfg TAIWAN
Cut of Dia 41 mm
Cut of Length 80 mm
Delivery Time 90 DAYS
HP 300
Location OUT OF INDIA
Make BIING FENG
Max Shank Length 35 mm
Max wire dia 35 mm
Model BF-C-PF-41B
Type Nut and Nut-Part Former
Weight 103 TON
Year of Mfg 2022
Quantity 1

Specifications:

MACHINE IS IN RUNNING AND GOOD CONDITION
Product conveyer
Sky crane for tooling
Horizontal wire stand
Power = 220V 60HZ 3PH
Max. Cut-off Diameter (mm): 41
Max. Cut-off Length (mm): 80
Max. Front Knock-out Length (mm): 35
Max. Rear Knock-out Length (mm): 80
Max. Die Center Distance (mm): 165
Forging Force (ton): 630
Main Motor (HP): 300
Hydraulic Motor (HP): 1 / 2 / 2
Oil Capacity (gallon): 1250
Machine Weight (ton): 103
Machine Dimensions (L W H) (m): 7.2 4.05 2.9
