Conveyorized Flat Belt Grinding / Polishing Machine

Specifications:

USED MACHINE TECHNICAL SPECIFICATION
Conveyorized Flat Belt Grinding / Polishing Machine
________________________________________
Offered Machine
Machine Type : Conveyorized Flat Belt Grinding / Polishing Machine
Manufacturer : Grind Master Machines Pvt. Ltd., India
Model : CFG150-2BH
Manufactured Date : May 2023
Machine Configuration : 2 Belt Head Machine
Machine Condition : Used / Re-sale Machine

MACHINE DESCRIPTION

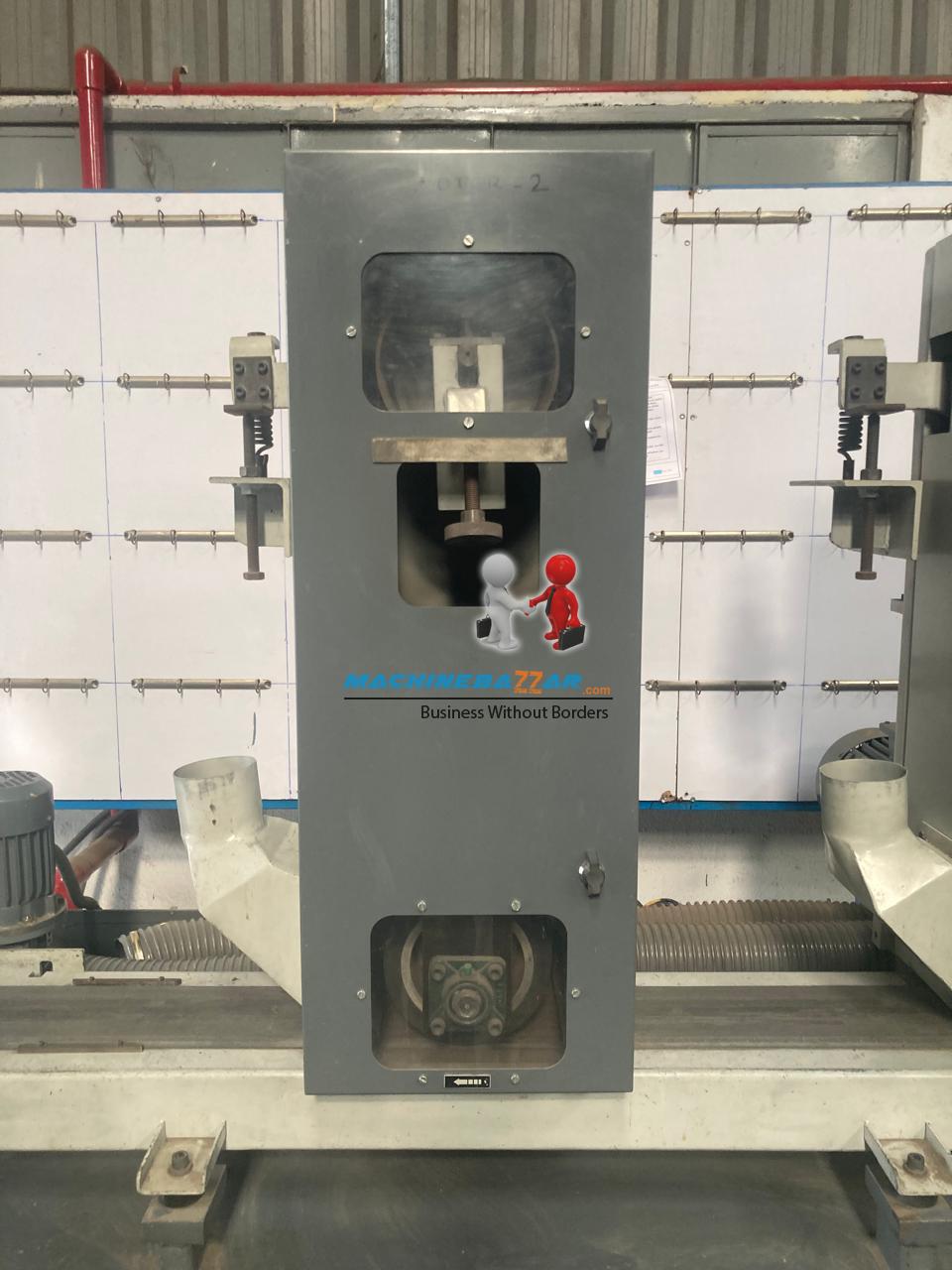

The CFG150-2BH is a conveyorized flat belt grinding and polishing machine designed for deburring, grinding, finishing, and surface polishing of flat metallic components. The machine is equipped with heavy-duty abrasive belt grinding heads mounted on a rigid fabricated structure for stable and reliable operation.
The machine is suitable for continuous production applications and can process flat components with consistent surface finish quality.

JOB SIZE CAPACITY

Parameter Minimum Maximum
Length 300 mm 1000 mm
Thickness / Height 1.2 mm 90 mm
Width 5 mm 145 mm
Note: Small non-magnetic parts may require fixtures for proper holding during operation.

Belt Grinding Head 1
Abrasive Belt Size : 150 x 2000 mm
Belt Grinding Motor : 5 HP/ 3.7 KW per head
Contact Wheel Size : 200 x 165 mm wide
Belt Tensioning : Spring loaded
Head Position Adjustment : Manual
Vertical Adjustment Range : 100 mm from conveyor level
Belt Grinding Head 2
Abrasive Belt Size : 150 x 2000 mm
Belt Grinding Motor : 5 HP/3.7 KW per head
Contact Wheel Size : 200 x 165 mm wide
Belt Tensioning : Spring loaded
Head Position Adjustment : Manual
Vertical Adjustment Range : 100 mm from conveyor level

Conveyor System
Conveyor Type : Endless Nylon Conveyor Belt
Conveyor Width : 160 mm
Conveyor Motor : 0.5 HP/0.37 KW
Conveyor Speed : Approx. 6 m/min (Fixed Speed)
Conveyor Support : Machined support table beneath conveyor
